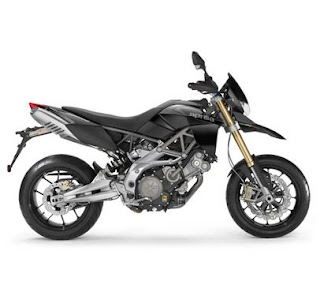

Aprilia Dorsoduro 750

Specifications
  • Engine: Aprilia V90 four stroke longitudinal 90° V twin. Liquid cooling. Double overhead camshaft with mixed gear/chain drive; four valves per cylinder.

  • Fuel: Unleaded petrol

  • Bore x Stroke: 92 x 56,4 mm

  • Total displacement: 749,9 cc

  • Compression ratio: 11 : 1

  • Maximum power at the crank: 67.3 kW (92 HP) at 8750 rpm.

  • Maximum torque at the crank: 8.4 kgm (82 Nm) at 4500 rpm.

  • Fuel system: Integrated engine management system. Electronic fuel injection with ride-by-wire electronic throttle control.

  • Ignition: Digital electronic, integrated in the fuel injection system.

  • Starting: Electric

  • Exhaust: Two in one system in 100% stainless steel with three-way catalytic converter and Lambda probe.

  • Generator: 450 W at 6000 rpm.

  • Lubrification: Wet sump.

  • Gear box: Six speed. Transmission ratios: 1st 14/36 (2.57) 2nd 17/32 (1.88) 3rd 20/30 (1.5) 4th 22/28 (1.27) 5th 23/26 (1.13) 6th 24/25 (1.04)

  • Clutch: Hydraulically operated multi-plate wet clutch.

  • Primary drive: Spur gears. Transmission ratio 38/71 (1.87).

  • Final drive: Chain. Transmission ratio 16/46.

  • Frame: Modular steel trellis secured to aluminium side plates by high strength bolts. Detachable rear frame.

  • Front suspension: 43 mm upside-down fork. 160 mm wheel travel.

  • Rear suspension: Aluminium alloy swingarm.

  • Shock absorbers: Hydraulic shock absorber adjustable in spring preload and rebound damping. Wheel travel: 160 mm

  • Brakes: Front: Double stainless steel floating disc (Ø 320 mm). Four-piston radial calipers. Metal braided brake line. Rear: Stainless steel disc (diam. 240 mm) with single piston caliper. Metal braided brake line.

  • Wheels: Aluminium alloy. Front: 3.50 x 17". Rear: 6.00 x 17".

  • Tyres: Radial tubeless. Front: 120/70 ZR 17. Rear: 180/55 ZR 17.

  • Dimensions: Overall length: 2216 mm Overall width: 905 mm (at handlebars) Overall height: 1185 mm (at instruments) Seat height: 870 mm Wheelbase: 1505 mm Trail: 108 mm Rake angle: 26°

  • Dry weight: 186 kg

  • Fuel tank capacity: 12 litres (autonomy > 200 km)

Source:
http://www.aprilia.com
