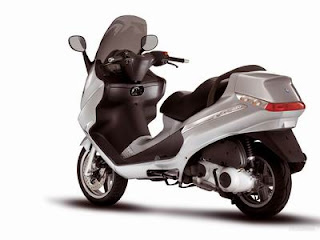

Piaggio X8 250 (2007)

Technical Specifications
2007 Piaggio X8 250
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Air-cooled, 24-stroke, single cylinder
40.0 x 39.3 mm (1.6 x 1.5 inches)
249 cc
2 valves per cylinder
10.3:1


Injection
Automatic
Belt
Automatic centrifuge type
Inductive
Electric starter
Separate with automatic mixer




Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Double cradle of steel tubes
25°
2050 mm (80.7 inches)
700 mm (27.6 inches)

1490 mm (58.7 inches)
775 mm (30.5 inches)

178 kg
10.2 litres

Hydraulic telescopic fork
Two dual-effect shock absorbers and four-position spring preload
120/70-R14
130/70-R12
Single disc 260 mm with 2-piston calipers
Single disc 240 mm with 2-piston calipers
