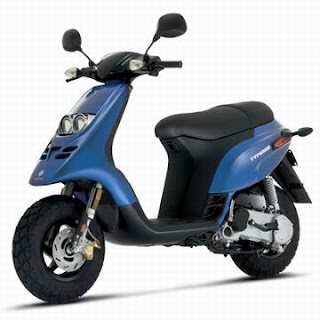

Piaggio Typhoon 50 (2005)

Technical Specifications
2005 Piaggio Typhoon 50
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Air-cooled, 2-stroke, single cylinder
40.0 x 39.3 mm (1.6 x 1.5 inches)
49.3 cc
2 valves per cylinder
10.3:1


Carburettor
Automatic
CVT
Automatic dry centrifugal type
Electronic CDI
Electric starter
Separate with automatic mixer




Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Welded steel tubes with pressed steel reinforcements
25°
1800 mm (70.9 inches)
700 mm (27.6 inches)

1280 mm (50.4 inches)
775 mm (30.5 inches)

81 kg
5.5 litres

Hydraulic telescopic fork with upside down shafts
Hydraulic double effect single damper, co-axial helicoidal spring
120/90-R10
120/90-R10
Single disc 190 mm with 2-piston calipers
Expanding brake (drum brake) 100 mm

Image: http://www.varsitycycle.com/piaggio_typhoon.shtml
