Piaggio Mp3 Hybrid 125 (2010)

Technical Specifications
2010 Piaggio Mp3 Hybrid 125
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Fuel consumption
Greenhouse gases
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid-cooled, 4-stroke, single cylinder
72.0 x 60.0 mm (2.8 x 2.4 inches)
124 cc
2 valves per cylinder
12.0:1

16.00 Nm (1.6 kgf-m or 11.8 ft.lbs) @ 3500 rpm
Carburettor
1.38 litres/100 km (72.5 km/l or 170.45 mpg)
32.0 CO2 g/km. (CO2 - Carbon dioxide emission)
Automatic
Belt
Automatic dry centrifugal type
Electronic CDI
Electric starter
Separate with automatic mixer




Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)


Suspension (rear)

Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel tube double cradle
25°
2070 mm (81.5 inches)
760 mm (29.9 inches)

1490 mm (58.7 inches)
790 mm (31.1 inches)

161 kg
12 litres
White
Articulated quadrilateral consisting of four aluminium arms
sustaining two steering tubes, and pull rod suspension geometry
with offset wheel axle
Two dual action hydraulic shock absorbers with adjustable spring
preload
120/70-R14
130/70-R12
Single disc 260 mm with 2-piston calipers
Single disc 240 mm with 2-piston calipers

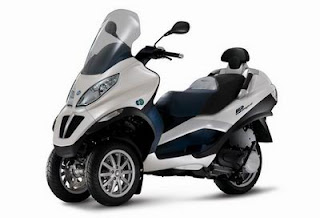

Image: http://www.francecars.co.uk/hire-piaggio-mp3-hybrid-vr51.htm
