Technical Specifications

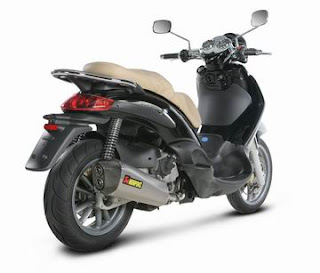

2011 Piaggio Beverly Cruiser 500
Engine
Engine type Liquid-cooled, 4-stroke, single cylinder
Bore x Stroke
Displacement 493 cc
Valves 4 valves per cylinder
Compression ratio 10.3:1
Max Power
Max Torque 44.00 Nm (4.5 kgf-m or 32.5 ft.lbs) @ 5250 rpm
Fuel system Carburettor
Transmission Automatic
Final drive Belt
Clutch Twist and Go, automatic dry centrifugal type
Ignition type Electronic CDI
Starting system Electric starter
Lubrication
Exhaust
Spark plug
Battery
Gear ratios
Dimensions
Frame type Single tube frame, pressed high strenght steel
Rake 25°
Overall length 2160 mm (85.0 inches)
Overall width 800 mm (31.5 inches)
Overall height 1240 mm (48.8 inches)
Wheelbase 1300 mm (51.2 inches)
Seat height 781 mm
Ground clearance
Dry weight 209 kg
Fuel capacity 13 litres
Colors Black, Blue
Suspension (front) Telescopic hydraulic fork
Suspension (rear) Hydraulic shock absorber
Tyre (front) 110/70-R15
Tyre (rear) 150/70-R14
Brake (front) Dual disc 260 mm with 2-piston calipers
Brake (rear) Single disc 240 mm with 1-piston calipers
