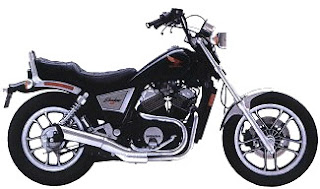

Honda VT 500 C Shadow (1984)

Technical Specifications
Honda VT 500 C Shadow
Engine
Engine type
Bore x Stroke
Displacement
Compression ratio
Max power
Max torque
Valves
Fuel system
Clutch
Gearbox
Ratios


Starting system
Ignition

liquid cooled, v-twin, 4-stroke
65 mm x 45.2 mm
491 cm3
11.6:1
78.2 hp (58.3 kW) @ 10500 rpm
58 Nm (42.8 ft. lbs) @ 8000 rpm
DOHC, 4 valves per cylinder
34mm slanted flat-slide VP-type carburettors
Wet, multiplate with coil springs
Manual 6-Speed
1st 2.928 (41/14), 2nd 2.062 (33/16), 3th 1.647
(28/17), 4th 1.368 (26/19), 5th 1.200 (24/20), 6th
1.086 (25/23)
Electric starter
Computer-controlled digital transistorised with
electronic advance
Dimensions
Frame
Wheelbase
Seat height
Dry weight
Fuel capacity
Frame type
Suspension (front)
Suspension (rear)

Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)


mm
mm
180 kg (396.8 pounds)

12,5 l (3.3 gallon US)
Mono-backbone; rectangular-section steel tube
41mm telescopic fork, 120 mm travel
Monoshock damper with 7-step adjustable preload,
125 mm travel
120/70-17
160/60-17
dual 296 mm discs with 2-piston calipers
single 240 mm disc with 1-piston calipers

Image: http://www.motorera.com
