Suzuki SV 400 S (2001)

Technical Specifications
Suzuki SV 400 S (2001)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, 90° v-twin, 4-stroke, DOHC
72.0 x 49.0 mm
399 cc
4 valves per cylinder
11.8:1
53 hp (39.5 kW) @ 10500 rpm
41 Nm (30.2 ft. lbs) @ 8000 rpm
Carburetors, BDSR36
6-speed
Chain
Wet multiple plate, coil springs
Electronic ignition (transistorized)
Electric starter
Wet sump



1st 2.461
2nd 1.777
3rd 1.380
4th 1.125
5th 0.961
6th 0.851
Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Diamond
25°
2040 mm (80.3 inches)
740 mm (29.1 inches)
1130 mm (44.5 inches)
1415 mm (55.7 inches)
785 mm (30.9 inches)
140 mm (5.5 inches)
167 kg
16 litres

Telescopic, coil spring, oil damped
Swinging arm, coil spring, oil damped, spring pre-load
120/60-R17
160/60-R17
Dual disc 290 mm with 2-piston calipers
Single disc 220 mm with 1-piston calipers

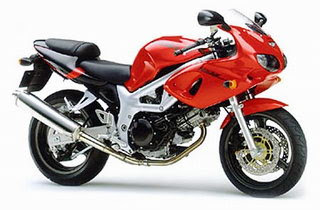

Picture: http://www.suzukicycles.org/SV-series/SV400-SV400S.shtml
