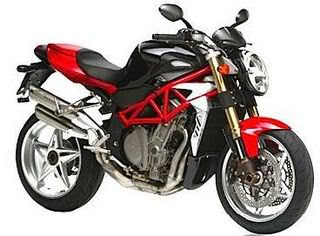

Technical SpecificationsMV Agusta F4 Brutale Serie oro (2002)
| Engine Engine type Bore x Stroke Displacement Valves Compression ratio Max Power Max Torque Fuel system Transmission Final drive Clutch Ignition type Starting system Lubrication Exhaust Spark plug Battery Gear ratios | Liquid cooled, 4-cylinders in line, 4-stroke, DOHC 73.8 x 43.8 mm 749 cc 4 valves per cylinder 12.0:1 127 hp (94.7 kW) @ 12000 rpm 77.4 Nm (57.1 ft. lbs) @ 10500 rpm Weber Marelli 1,6 M ignition - injection integrated system; induction discharge electronic ignition, Multipoint electronic injection 6-speed Chain Transistorized with electronic advance Electric starter Wet sump |
| Dimensions Frame type Castor Overall length Overall width Overall height Wheelbase Seat height Ground clearance Dry weight Fuel capacity Colors Suspension (front) Suspension (rear) Tyre (front) Tyre (rear) Brake (front) Brake (rear) | 2026 mm (79.8 inches) 820 mm (32.3 inches) 1414 mm (55.7 inches) 805 mm (31.7 inches) 135 mm (5.3 inches) 179 kg 19 litres Upside-down telescopic hydraulic fork with rebound- compression damping and spring preload adjustment, 118 mm travel Progressive,single shock absorber with rebound- compression damping and spring preload, 120 mm travel 120/65-R17 190/50-R17 Dual disc 310 mm with 6-piston calipers Single disc 210 mm with 4-piston calipers |
