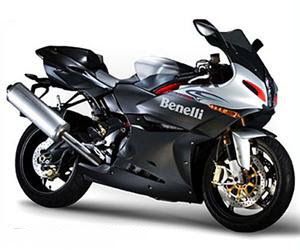

Benelli Tornado 1130 (2006)

Technical Specifications
Benelli Tornado 1130 (2006)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, 3-cylinders in line, 4-stroke, DOHC
88.0 x 62.0 mm (3.5 x 2.4 inches)
1130 cc
4 valves per cylinder
11.0:1

124.00 Nm (12.6 kgf-m or 91.5 ft.lbs) @ 8000 rpm
Injection. Electronic injection with 1 injector per cylinder
6-speed
Chain
Dry clutch
Single coil inductive discharge electronic ignition
Electric starter
Wet sump



1st 14/39
2nd 18/35
3th 21/32
4th 23/30
5th 24/28
6th 25/27
Dimensions
Frame type


Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)

Suspension (rear)



Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Mixed design. Front trusses in ASD tubular steel securely fitted
with traction screws with aluminium alloy casting rear section.
Steering head angle fixed 23,5
23.5°
1910 mm (75.2 inches)
717 mm (28.2 inches)
1153 mm (45.4 inches)
1419 mm (55.9 inches)
818 mm (32.2 inches)

185 kg
20.5 litres

Marzocchi upside down stanchion fork diameter 50 mm,
adjustable in compression and extension with spring pre-load
Asymmetric swingarm, composed of cast aluminium and pressed
in aluminium alloy, with Extreme Technology single shock
absorber adjustable in compression, duel regulation for low and
high speed dampin
120/70-R17
190/50-R17
Dual disc 320 mm with 4-piston calipers
Single disc 180 mm with 2-piston calipers

Image: http://www.motorcycle-usa.com
