Suzuki Boulevard ltd (2008)

Technical Specifications
Suzuki Boulevard ltd (2008)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, v-twin, 4-stroke, SOHC
65.0 x 60.2 mm
399 cc
4 valves per cylinder
10.5:1
33 hp (24.6 kW) @ 8000 rpm
33 Nm (24.3 ft. lbs) @ 6000 rpm
Carburetors, BDSR29
5-speed
Belt
Wet multiple plate coil springs
Full transistor system
Electric starter
Wet sump



1st 2.461
2nd 1.631
3rd 1.227
4th 1.000
5th 0.814
Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Double cradle
33.2°
2370 mm (93.3 inches)
920 mm (36.2 inches)
1125 mm (44.3 inches)
1655 mm (65.2 inches)
700 mm (27.6 inches)
140 mm (5.5 inches)
240 kg
17 litres

Telescopic, coil spring, oil damped
Swinging arm, coil spring, oil damped, spring pre-load
130/90-R16
170/80-R15
Single disc with 2-piston calipers
Drum

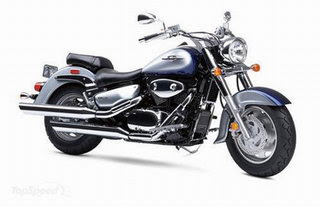

Picture: http://www.topspeed.com
