Honda CBR 600 RR Movistar (2006)

Technical Specifications
Honda CBR 600 RR Movistar (2006)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system

Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Air-cooled, 4 - cylinders in line, 4-stroke, DOHC
67.0 x 42.5 mm (2.6 x 1.7 inches)
599 cc
4 valves per cylinder
12.0:1
110 hp (82 kW) @ 12500 rpm
66 Nm (6.7 kgf-m or 48.7 ft.lbs) @ 11000 rpm
Programmed Fuel Injection (PGM-FI) with automatic
enricher circuit

6-speed
Chain
Wet, multiplate with coil springs
Computer-controlled digital transistorised with electronic advance
Electric starter





Dimensions
Frame type
Castor
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)

Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Diamond. Fine Die-Cast aluminium

2160 mm (85.0 inches)


1395 mm (54.9 inches)
820 mm (32.3 inches)
130 mm (5.1 inches)
163 kg
18 litres

43mm H.M.A.S. cartridge-type telescopic fork
Pro-Link with gas-charged H.M.A.S. damper, stepless adjustable
rebound damping
120/70-ZR17
180/55-ZR17
Single disc 310 mm with 4-piston calipers
Single disc 220 mm with 1-piston calipers

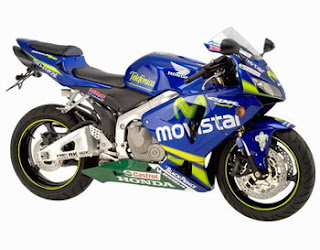

Image: http://www.essexbikers.co.uk
