Yamaha YZF-R1 SP

Technical Specifications
Yamaha YZF-R1 SP (2006)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system

Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, 4 - cylinders in line, 4-stroke, DOHC
77.0 x 53.6 mm
998 cc
5 valves per cylinder
12.3:1
175 hp (130.5 kW) @ 12500 rpm
107.1 Nm (79 ft. lbs) @ 10500 rpm
Fuel injection, dual-valve throttle bodies with motor-
driven secondary valves
6-speed
Chain
Multi-plate clutch
Digital TCI
Electric starter
Wet sump



1st 38/15
2nd 33/16
3th 37/21
4th 35/23
5th 30/22
6th 33/26
Dimensions
Frame ty
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)


Suspension (rear)

Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Deltabox V out of aluminium
24 degrees
2085 mm (82.1 inches)
720 mm (28.3 inches)
1105 mm (43.5 inches)
1415 mm (55.7 inches)
835 mm (32.9 inches)
135 mm (5.3 inches)
174 kg
18 litres

43mm Special Ohlins inverted telescopic fork w/adjustable
preload, separate high & low-speed compression damping,
rebound damping, 120 mm travel
Single Ohlins shock w/adjustable preload, separate high &
low-speed compression damping, rebound damping
120/70-R17
190/50-R17
Dual discs 320 mm with 4-piston calipers
Single disc 220 mm with 1-piston calipers

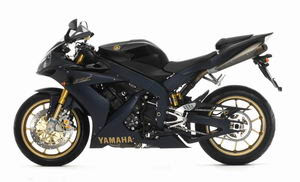

Picture: http://www.yamaha-motor.gr
