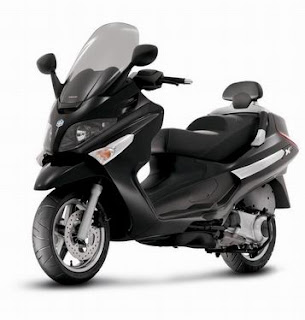

Piaggio XEvo 250 (2010)

Technical Specifications
2010 Piaggio XEvo 250
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid-cooled, 4-stroke, single cylinder
72.0 x 60.0 mm (2.8 x 2.4 inches)
244 cc
2 valves per cylinder
12.0:1

11.70 Nm (1.2 kgf-m or 8.6 ft.lbs) @ 8500 rpm
Carburettor
Automatic
Belt
Automatic dry centrifugal type
Electronic CDI
Electric starter
Separate with automatic mixer




Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel tube double cradle
25°
2070 mm (81.5 inches)
760 mm (29.9 inches)

1490 mm (58.7 inches)
790 mm (31.1 inches)

168 kg
12 litres
Blue, Black
Hydraulic telescopic fork
Two dual-effect shock absorbers and four-position spring preload
120/70-R14
130/70-R12
Single disc 260 mm with 2-piston calipers
Single disc 240 mm with 2-piston calipers
