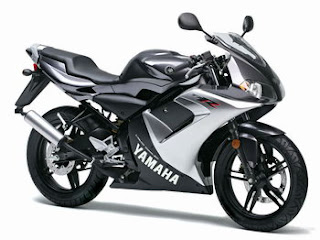

Yamaha TZR 50cc (2006)

Technical Specifications
Yamaha TZR 50cc (2006)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid-cooled, 2-stroke, single cylinder
40.3 x 39.0 mm (1.6 x 1.5 inches)
49.70 cc
2 valves per cylinder
11.5:1

2.58 Nm (0.3 kgf-m or 1.9 ft.lbs) @ 5500 rpm
Carburettor
5-speed
Chain
Manual, Multiplate Wet Clutch
Electronic (CDI)
Electric starter
Separate lubrication




Dimensions
Frame type
Castor
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)



2202 mm (86.7 inches)

1105 mm (43.5 inches)
1341 mm (52.8 inches)
781 mm (30.7 inches)

113 kg
13.8 litres
Yamaha blue, Midnight black
Telescopic, coil spring, oil damped
Swinging arm, coil spring, oil damped, spring pre-load
100/80-H17
130/70-H17
Single disc 280 mm with 2-piston calipers
Single disc 220 mm with 1-piston calipers
