Buell Lightning XB12Ss (2006)

Technical Specifications
Buell Lightning XB12Ss (2006)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Oil/air cooled, 45° v-twin, 4-stroke
88.9 x 96.8 mm (3.5 x 3.8 inches)
1203 cc
OHV, self adjusting, 2 valves per cylinder
10.0:1
103 hp (76.8 kW) @ 6800 rpm
113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 rpm
49 mm downdraft DDFI II fuel injection
5-speed
Belt
Wet, multiplate, compensated, reduced lever effort

Electric starter
Dry sump
InterActive, Mass centralized muffler mounted under the bike


1st 2.688
2nd 1.850
3rd 1.433
4th 1.181
5th 1.000
Dimensions
Frame type

Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)

Suspension (rear)


Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Aluminum frame w/ Uniplanar® powertrain vibration isolation
system - Fuel in Frame
21 degrees
2022 mm (79.6 inches)
754 mm (29.7 inches)
1069 mm (42.1 inches)
1369 mm (53.9 inches)
726 mm (28.6 inches)
118 mm (4.7 inches)
181.4 kg
16.6 litres
Red, grey
Showa® inverted fork w/ adjustable compression damping,
rebound damping and spring preload, 120 mm travel
Showa coil-over monoshock w/ remote, underseat reservoir and
adjustable compression damping, rebound damping and spring
preload, 127 mm travel
120/70-ZR17
180/55-ZR17
Single disc 375 mm with 6-piston calipers
Single disc 240 mm with 1-piston calipers

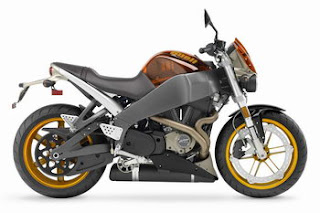

Image: http://motorcycle-web.com/buell/lightning_xb12s_2006/1.shtml
