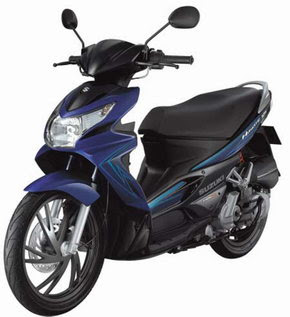

Suzuki Hayate 125

Technical Specifications
Suzuki Hayate 125
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Air-cooled, 4-stroke, single cylinder, SOHC
53.5 x 55.2 mm
124 cc
2 valves per cylinder
9.6:1
9.6 ps @ 8000 rpm
9.8 Nm @ 6000 rpm
Carburettor,Mikuni BS 26
Automatic
V-belt
Automatic dry Clutch
DC CDI (Digital)
Kick & electric starter
Mechanical Oil pump

NGK C6HSA/ND U20FS-U
12V (3.6 Ah)/10HR

Dimensions
Frame type
Castor
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Underbone

1925 mm
670 mm
1070 mm
1285 mm
781 mm
140 mm
113 kg
5 litres

Telescopic, coil spring, oil damped
Swinging arm, coil spring, oil damped, spring pre-load
70/90 - 16 M/C 36 P
80/90 - 16 M/C 43 P
Single disc 220 mm with 2-piston calipers
Drum 130 mm

Image: http://www.krjogja.com
