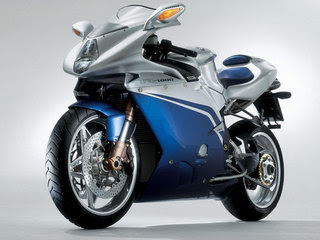

MV Agusta F4 1000 S 1-1 (2004)

Technical Specifications
MV Agusta F4 1000 S 1-1 (2004)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system

Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, 4-cylinders in line, 4-stroke, DOHC
76.0 x 55.0 mm
998 cc
Radial valve, 4 valves per cylinder
12.0:1
166 hp (123.8 kW) @ 12700 rpm
109 Nm (80.4 ft. lbs) @ 10200 rpm
injection integrated system; induction discharge electronic
ignition,Multipoint electronic injection
6-speed
Chain
Wet, multi-disc
Weber Marelli 1,6 M ignition
Electric starter




1st 13/38
2nd 16/34
3rd 18/32
4th 20/30
5th 22/29
6th 21/25
Dimensions
Frame type
Castor
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)

Suspension (rear)


Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

CrMo Steel tubular trellis (TIG welded)

2007 mm (79 inches)
685 mm (27 inches)

1408 mm (55.4 inches)
810 mm (31.9 inches)
130 mm (5.1 inches)
193 kg
21 litres

Upside-down telescopic hydraulic fork with rebound-compression
damping and spring preload adjustment, 118 mm travel
Progressive, single shock absorber with rebound and compression
(High speed / Low speed) damping and spring preload (hydraulic
control), 120 mm travel
120/65-R17
180/55-R17
Dual disc 310 mm with 6-piston calipers
Single disc 220 mm with 4-piston calipers

Picture: http://in-motorcycles.onsugar.com/date/2010/2/6
