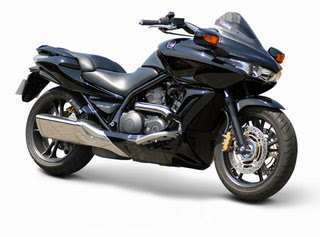

Honda DN-01 (2008)

Technical Specifications
Honda DN-01 (2008)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission

Final drive
Clutch

Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, 52° v-twin, 4-stroke, SOHC
81.0 x 66.0 mm
680 cc
4 valves per cylinder
10.0:1
61 hp (45.5 kW) @ 7500 rpm
64 Nm (47.2 ft. lbs) @ 6000 rpm
PGM-FI (programmed fuel injection)
Hydraulic mechanical system (HFT with electric manual
mode)
Cardan
Oil pressure regulator system in gearbox (with lock-up
mechanism)
Fully transistorized, battery-powered
Electric starter
Force-fed and splash




Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)

Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Double cradle
28.30°
2320 mm (91.3 inches)
835 mm (32.9 inches)
1115 mm (43.9 inches)
1610 mm (63.4 inches)
690 mm (27.2 inches)
130 mm (5.1 inches)
269 kg
15 litres

Telescopic, coil spring, oil damped
Single conventional dampers with 7 step adjustable spring
preload, 120 mm travel
130/70-R17
190/50-R17
Dual disc 296 mm with 3-piston calipers (ABS)
Single disc 276 mm with 2-piston calipers (ABS)

Picture: http://www.moto-works.jp/bikes/dn_01.html
