Honda CBR 400 RR (1997)

Technical Specifications
Honda CBR 400RR (1997)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, 4 - cylinders in line, 4-stroke, DOHC
55.0 x 42.0 mm
399 cc
4 valves per cylinder
11.7:1
53 hp (39.5 kW) @ 13000 rpm
35.3 Nm (26 ft. lbs) @ 10000 rpm
Carburetors, VP 01
6-speed
Chain
Wet multiple plate coils & spring
Full transistor type (PGM ignition) battery ignition
Electric starter
Force splash combined use system



1st 3.307
2nd 2.352
3rd 1.875
4th 1.578
5th 1.434
6th 1.318
Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Backbone
24.3 degrees
1990 mm (78.3 inches)
670 mm (26.4 inches)
1080 mm (42.5 inches)
1375 mm (54.1 inches)
750 mm (29.5 inches)
125 mm (4.9 inches)
163 kg
15 litres

Telescopic, coil spring, oil damped
Swinging arm, coil spring, oil damped, spring pre-load
120/60-R17
150/70-R18
Dual disc 275 mm with 4-piston calipers
Single disc 220 mm with 2-piston calipers

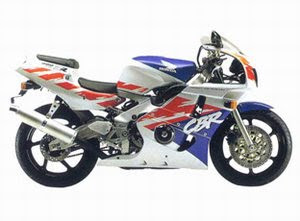

Picture: http://www.tradebit.com/filedetail.php/6436294-honda-cbr400-service-manual-1988-1999-download
