Gilera Nexus 250 (2006)

Technical Specifications
Gilera Nexus 250 (2006)
Engine
Engine type
Bore x Stroke
Valves
Displacement
Compression ratio
Max power
Max torque
Transmission
Clutch
Final drive
Starting system
Fuel system
Lubrication system

Ignition system

Battery
Exhaust
Gear Ratios

Liquid cooled, Single-cylinder, 4-stroke, SOHC
72.0 x 60.0 mm
4 valves per cylinder
244 cc
10.5:1


Automatic convertor
Dry centrifugal type
Belt
Electric starter system with freewheel
Electronic injection
By trochoidal pump (inside the crankcase), pressure
adjustment by-pass and oil filter
inductive, high efficiency integrated with the injection system
with variable timing and separate HV coil
Dry-cell lead-acid battery, 12V-14Ah
Closed loop system with lambda sensor and three-way

Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Seat height
Wheelbase
Ground Clearance
Dry weight
Fuel capacity
Color
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Double cradle high-strength steel tube trellis
24.6ยบ
2100 mm (82.7 inches)
780 mm (30.7 inches)
1,135 mm
810 mm (31.9 inches)
1530 mm (60.2 inches)
147 mm (10.24 inches)
174 kg
15 litres

Hydraulic telescopic fork, 41 mm
Two dual effect hydraulic dampers, helicoidal spring
120/70-R14″ Tubeless 56H
140/60-R14″ Tubeless 65H
Single disc 260 mm disc with dual piston calliper
Single disc 240 mm disc with dual piston calliper

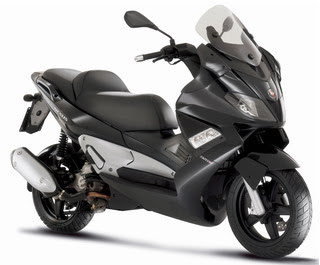

Image: http://scooterwallpapers.blogspot.com/2009/09/gilera-nexus-250-2006-scooter.html
