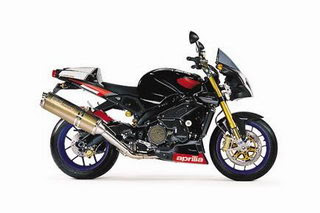

Aprilia Tuono Racing (2003)

Technical Specifications
Aprilia Tuono Racing (2003)
Engine
Engine type
Bore x Stroke
Displacement
Valves

Compression ratio
Max Power
Max Torque
Fuel system


Transmission
Final drive
Clutch

Ignition type


Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, 60° v-twin, 4-stroke, DOHC
97.0 x 67.5 mm
997 cc
4 valves per cylinder
Double overhead cams, mixed gear/chain timing drive
11.4:1
130 hp (96.9 kW) @ 9500 rpm
101 Nm (74.5 ft. lbs) @ 7250 rpm
Integrated electronic engine management system,
Indirect multi-point electronic injection,
95 RON lead-free fuel
6-speed
Chain
Multiple disk in oil bath with patented PPC
power-assisted hydraulic control, Metal braided clutch line
Digital electronic ignition with TSI (Twin Spark Ignition)
with two spark plugs per cylinder, Ignition timing
integrated in the injection control system
Electric starter
Dry sump with separate stainless steel oil reservoir



1st 34/15 (2.27)
2nd 31/19 (1.63)
3rd 26/20 (1.3)
4th 24/22 (1.091)
5th 24/25 (0.96)
6th 23/26 (0.88)
Dimensions
Frame type


Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)



Suspension (rear)



Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Box section, sloping twin spar frame in aluminium alloy,
Ohlins Racing adjustable double chamber steering damper
with monoblock fitting
25°
2070 mm (81.5 inches)
800 mm (31.5 inches)
1200 mm (47.2 inches)
1415 mm (55.7 inches)
820 mm (32.3 inches)

193 kg
18 litres

43 mm Ohlins titanium nitride coated upside-down fork,
External adjustment system for rebound, compression
and preload, Shortened stanchions, Radially fixed
calliper, Solid machined light alloy top yok
Aluminium alloy swing-arm. Aprilia Progressive System
(APS) linkages, Ohlins Racing monoshock with piggy-back
cylinder, adjustable in rebound, compression, preload and
length, 135 mm travel
120/70-R17
180/55-R17
Dual disc 320 mm with 4-piston calipers
Single disc 220 mm with 2-piston calipers

Picture: http://www.visordown.com
