Aprilia RSV Mille R Factory (2005)

Technical Specifications
Aprilia RSV Mille R Factory (2005)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system

Transmission
Final drive
Clutch

Ignition type

Starting system
Lubrication

Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, 60° v-twin, 4-stroke, DOHC
97.0 x 67.5 mm
998 cc
4 valves per cylinder
11.8:1
139 hp (103.7 kW) @ 9500 rpm
107 Nm (78.9 ft. lbs) @ 7500 rpm
Integrated electronic engine management system. Indirect
multi-point electronic injection, throttle body 57mm
6-speed
Chain
Multiple disk in oil bath with patented PPC power-assisted
hydraulic control
Digital electronic ignition, with one spark plug per cylinder
and integrated injection
Electric starter
Dry sump with separate oil tank. Double trochoidal pump
with oil cooling radiator. Steel oil tank



1st 34/15 (2.27)
2nd 31/19 (1.63)
3rd 26/20 (1.3)
4th 24/22 (1.091)
5th 24/25 (0.96)
6th 23/26 (0.88)
Dimensions
Frame type

Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)



Suspension (rear)



Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Box section sloping twin-spar aluminium alloy frame
Two-chamber adjustable
24.8°
2035 mm (80.1 inches)
730 mm (28.7 inches)
1145 mm (45.1 inches)
1410 mm (55.5 inches)
810 mm (31.9 inches)

185 kg
19 litres

Ohlins titanium nitride coated 43 mm diameter upside-
down fork; External hydraulic adjustment system for
rebound, compression and preload. Lowered legs for radial
calliper mounting, 120 mm travel
Double banana aluminium alloy swing arm and APS
progressive system linkage. Ohlins Racing hydraulic shock
absorber with piggy-back cylinder and adjustable rebound,
compression and preload. , 133 mm travel
120/70-R17
180/55-R17
Dual disc 320 mm with 4-piston calipers
Single disc 220 mm with 2-piston calipers

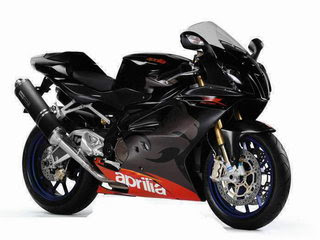

Picture: http://www.motorcyclespecs.co.za
