Suzuki GV 700 Madura

Technical Specifications
Suzuki GV 700 Madura (1984-1986)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Intake system
Spark plug
Battery
Gear ratios

Liquid Cooled, Four Stroke, 82°V-Twin, OHC
69.0 x 46.0 mm
698 cc
4 valves per cylinder
10.5:1


Carburetor Mikuni CV
6-speed
Shaft
Multi-plate

Electric starter
Dry sump


12V 6Ah

Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)
Suspension (rear)
Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)



2225 mm
879 mm
1191 mm
1575 mm
845 mm
mm
228 kg
litres

39 Mm Air Assisted Telescopic Forks
Single Shock Spring Oil Damped Shocks
110/80-R19
140/80-R16
Single disc 280 mm
Drum

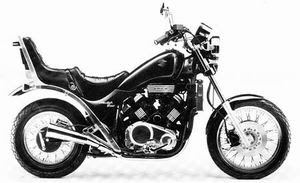

Picture: http://www.suzukicycles.org/1980-1989/1985a.shtml
