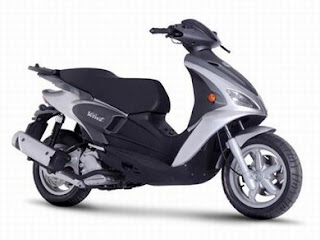

Benelli Velvet 250 (2007)

Technical Specifications
Benelli Velvet 250 (2007)
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, single cylinder, 4-stroke, SOHC
59.5 x 54.8 mm
249 cc
2 valves per cylinder
9.4:1

23.00 Nm (2.3 kgf-m or 17.0 ft.lbs) @ 5750 rpm
Carburetors, TK D26
Automatic
V-belt

Electronic, capacitive discharge, spark gap 0,5-0,6
Electric starter
Wet sump




Dimensions
Frame type
Rake
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)

Suspension (rear)


Tyre (front)
Tyre (rear)
Brake (front)
Brake (rear)

Steel tube framework
26°
1910 mm (75.2 inches)
760 mm (29.9 inches)
1290 mm (50.8 inches)
1400 mm (55.1 inches)
818 mm (32.2 inches)

146 kg
11.7 litres

Ceriani leading axle telehydraulic fork, with aluminium sleeves,
rod diam. 33 mm, 97 mm travel
Engine casing acting as swing-arm, with extra support arm on
the right side; two oleodynamic shock-absorbers, spring preload
setting in 5 positions, 105 mm travel
120/70-R13
140/70-R12
Single disc 240 mm with 2-piston calipers
Single disc 220 mm with 2-piston calipers

Image: http://espaciomotos.com/benelli-velvet-250-2008-ficha-tcnica/
