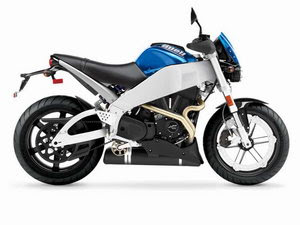

Buell Lightning CityX XB9SX

Technical Specifications
Engine
Engine type
Valve train
Bore x Stroke
Displacement
Compression ratio
Fuel delivery
Intake
Exhaust

Torque
Horsepower
Oil capacity
Oil filtration

Thunderstorm® air/oil/fan-cooled, 4-stroke, 45° V-Twin
OHV, two valves per cylinder, self-adjusting
88.90 mm x 79.38 mm
984 cc
10.0:1
45 mm down draft DDFI III fuel injection
Zero-resistance airbox
Tuned, tri-pass resonance chamber with
InterActive valve and mass-centralized mounting
94.9 NM @ 5500 RPM
92 HP @ 7500 RPM
2.4 L
Screw-on disposable element
Drivetrain
Primary drive
Final drive


Clutch
Transmission
Gear ratios

Chain, 1.676:1 ratio
New constant path, 14 mm pitch
aramid-reinforced Veyance Hibrex® belt with
Flexten® Plus technology, 2.407:1 ratio
Wet, multi-plate, compensated
5-speed, helical gear
1st 2.648
2nd 1.892
3rd 1.407
4th 1.166
5th 1
Electrical
Charging


Starting

Headlamp

Tail lighat
Turn signal

30-amp, permanent magnet, single-phase
alternator with solid-state regulator (405W
@3000 RPM, 405W peak)
1.2 kW electric with solenoid shift starter
motor engagement
Twin Quartz Halogen [H7] 55-watt low beam,
55-watt high beam
5W/21W
10W manual canceling
Dimensions
Overall length
Overall width
Seat height
Ground clearance
Rake
Fork angle
Trail
Wheelbase
Tire (front)
Tire (rear)
Fuel capacity
Dry wight
Load capacity

1935 mm
755 mm
765 mm
110 mm
21.0º
21.0º
83 mm
1320 mm
Pirelli® Scorpion® Sync® 120/70ZR-17 58W
Pirelli® Scorpion® Sync® 180/55ZR-17 73W
14.5 L
177 kg
182 kg
Chassis
Frame

Front forks


Rear shock


Front wheel
Rear wheel
Brake (front)


Brake (rear)

Black aluminium frame with Uniplanar™
powertrain vibration isolation system, fuel in frame
43 mm Showa® inverted forks with adjustable
compression damping, rebound damping and
spring preload
Showa® coil-over monoshock with external
piggyback reservoir and adjustable compression
damping, rebound damping and spring preload
6-spoke, ZTL™ cast aluminum, 431.8 x 88.9 mm
6-spoke, cast aluminium, 431.8 x 139.7 mm
ZTL2™-type brake, 6-piston, fixed caliper,
375 mm single-sided, inside-out, stainless
steel, floating rotor
Single-piston, floating caliper; 240 mm
stainless steel, fixed rotor
