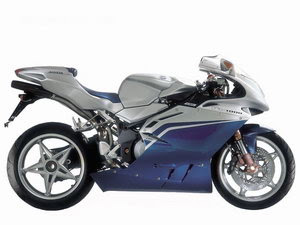

MV Agusta F4 Ago (2004)

Technical Specifications
MV Agusta F4 Ago
Engine
Engine type
Bore x Stroke
Displacement
Valves
Compression ratio
Max Power
Max Torque
Fuel system
Transmission
Final drive
Clutch
Ignition type
Starting system
Lubrication
Exhaust
Spark plug
Battery
Gear ratios

Liquid cooled, 4-cylinder, 4-stroke, DOHC with radial valve
76.0 x 55.0 mm
998 cc
4 valves per cylinder
13.0:1
122 hp (166 hp) @ 11750 rpm
109 Nm @ 10200 rpm
Multipoint electronic injection
6-speed constant mesh
Chain
Wet, multi-disc
Induction discharge electronic ignition
Electric starter
Wet sump




Dimensions
Frame type
Fairing material
Castor
Overall length
Overall width
Overall height
Wheelbase
Seat height
Ground clearance
Dry weight
Fuel capacity
Colors
Suspension (front)


Suspension (rear)

Tyre (front)
Tyre (rear)
Wheel (front)
Wheel (rear)
Brake (front)

Brake (rear)

CrMo steel tubular trellis (TIG welded)
Thermoplastic and carbon fibre



1408 mm
810 mm
130 mm
192 kg
21 litres

upside-down telescopic hydraulic fork with rebound
compression damping and spring preload adjustment
50 mm diameter with titanium nitride coating on the legs

progressive, with single sided swingarm, single Sachs
'Racing' shock absorber with double adjustment rebound-
compression damping and spring preload adjustment
120/65-ZR17
190/50-ZR17
Marchesini, forged aluminium, 3.50 x 17
Marchesini, forged aluminium, 5.75 x 17
Dual aluminium floating disc 310 mm with 6-piston solid
block 'Nissin Racing' calipers
Single steel disc 210 mm with 4-piston calipers
